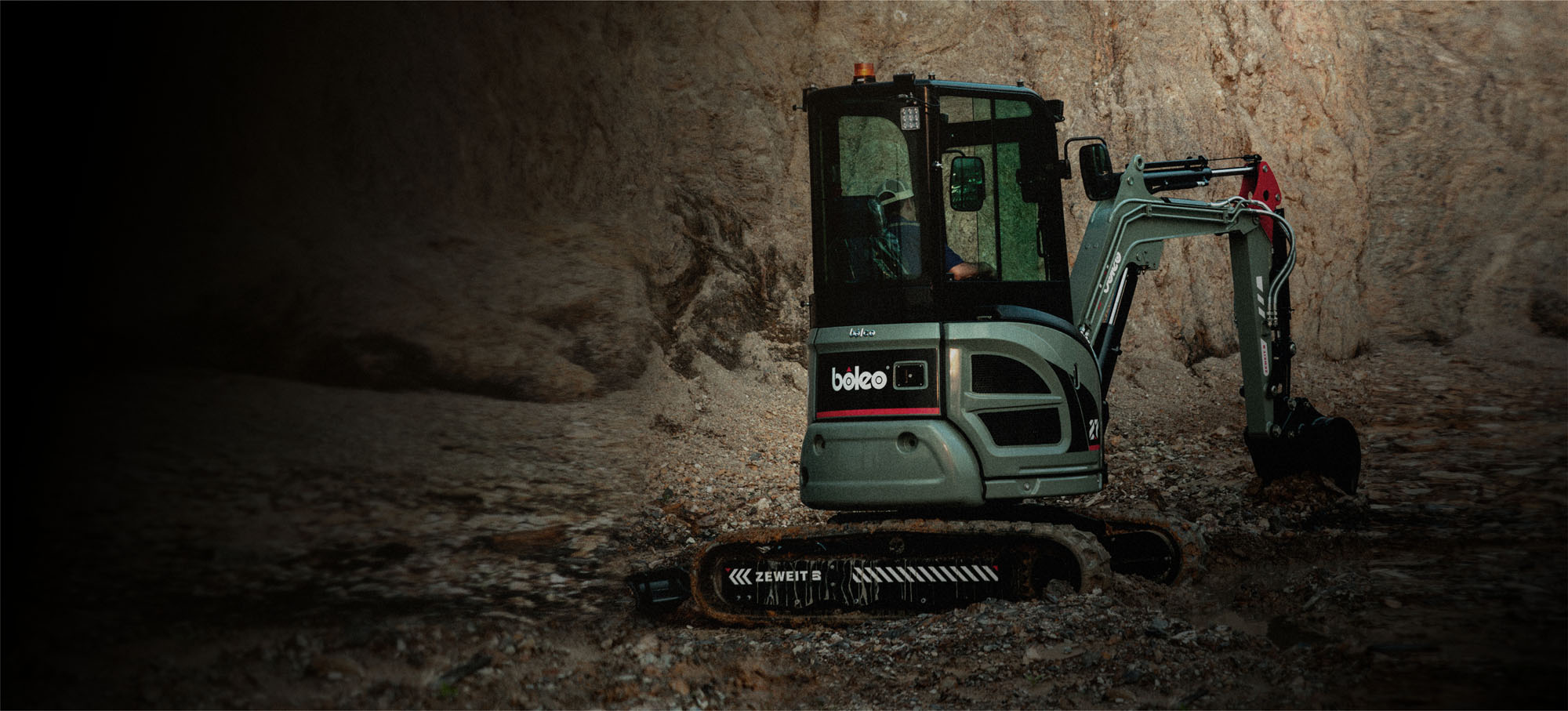

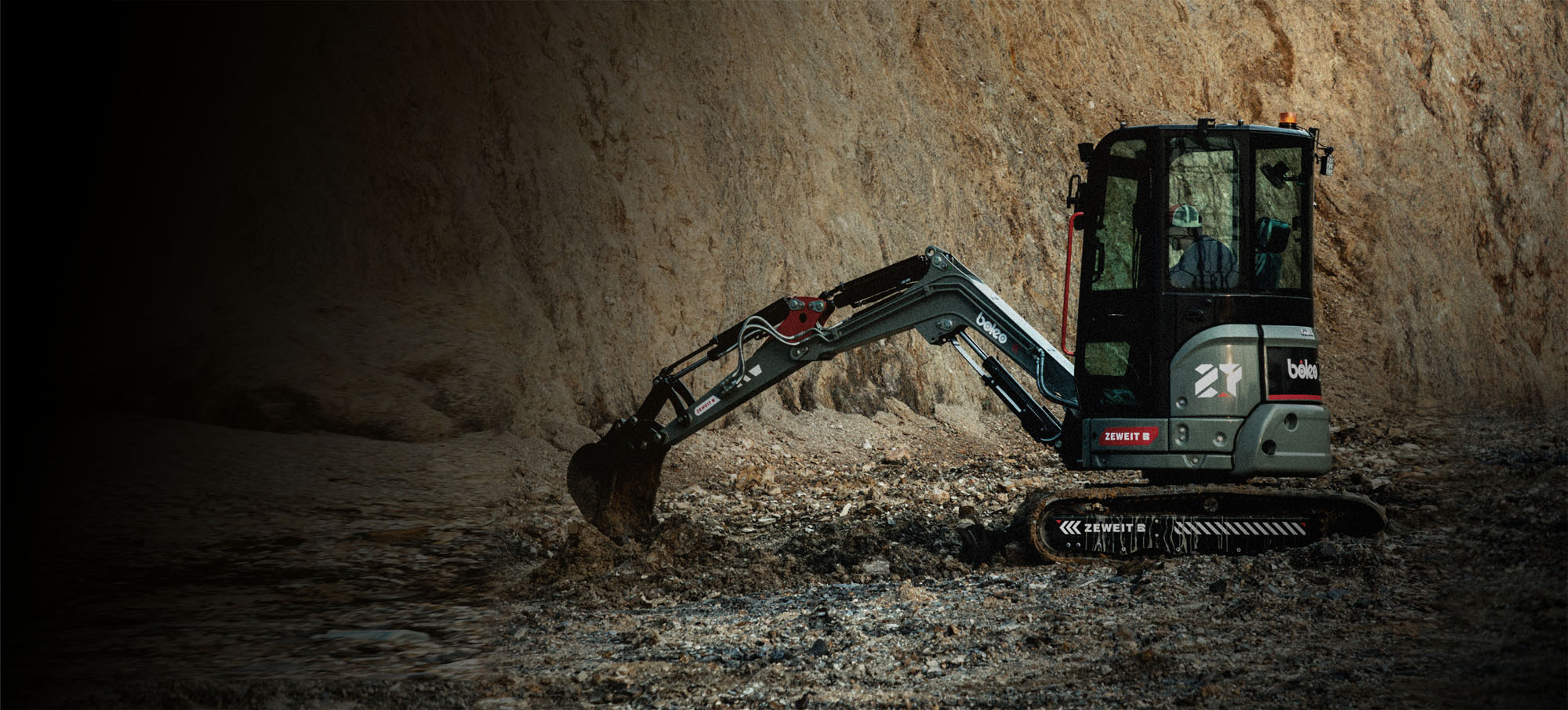

2.7 T

ZEWEIT 3

Euro V engine(Yanmar engine)

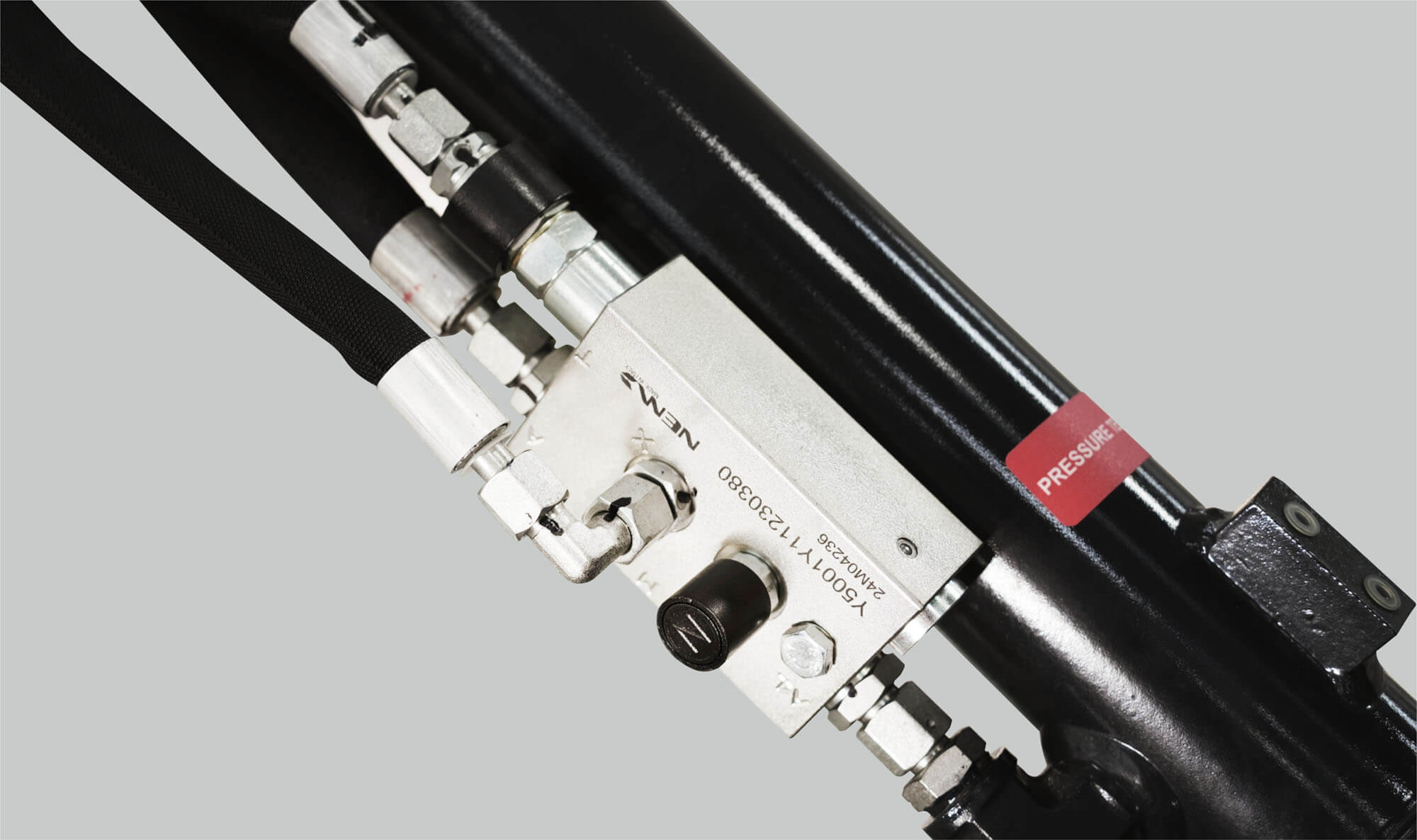

Load sensive hydraulic system
Superior working efficiency
Low fuel consumption
Standard with rubber tracks

ZEWEIT 3(2.7 T) Specs

Compare

Off

Metric

Download PDF

Expand all

Compare

ZEWEIT R(3.5 T)

Compare

ZEWEIT Z(2.0 T)

Compare

ZEWEIT 2(1.8 T)

Compare

ZEWEIT Y(1.7 T)

Compare

ZEWEIT X(1.2 T)

Compare

KEY SPECIFICATIONS

ZEWEIT 3(2.7 T)

Machine weight

2600 kg

5732 lb.

Bucket capacity

0.09 m³

0.118 yd³

Wiidth of bucket

510 mm

1'8'' ft. in.

* The final data shall be based on the actual factory products

ENGINE

ZEWEIT 3(2.7 T)

Make /Model

Yanmar 3TNV80F

Number of cylinders

Rated power, net(SAE J1995)

15.2/2500 kW/rpm

21 hp at 2500 hp/rpm

* The final data shall be based on the actual factory products

PERFORMANCE PARAMETER

ZEWEIT 3(2.7 T)

Max. gradeability

30 °

Max. digging force of arm

14.5 kN

3260 lbf.

Max. digging force of bucket

23.1 kN

5193 lbf.

Traveling speed

3.0/4.2 km/h

1.9 / 2.6 mph

Max. hauling force

26 kN

5845 lbf.

Slewing speed of platform

10~12 rpm

8.5-10.5 rpm

* The final data shall be based on the actual factory products

OPERATING DIMENSIONS

ZEWEIT 3(2.7 T)

Max. digging height

4170 mm

13'8'' ft. in.

Max. digging depth

2540 mm

8'4'' ft. in.

Max. digging radius

4520 mm

14'10'' ft. in.

Max. digging radius on ground level

4400 mm

14'5'' ft. in.

Max. dumping height

2780 mm

9'1'' ft. in.

Min. slewing radius

1950 mm

6'5'' ft. in.

Max. vertical digging depth

2240 mm

7'4'' ft. in.

* The final data shall be based on the actual factory products

TRANSPORTATION DIMENSION

ZEWEIT 3(2.7 T)

Overall length

4110 mm

13'6'' ft. in.

Overall width

1500 mm

4'11'' ft. in.

Overall height

2490 mm

8'2'' ft. in.

* The final data shall be based on the actual factory products

OTHER PARAMETER

ZEWEIT 3(2.7 T)

Width of undercarriage

1500 mm

4'11'' ft. in.

Length of track

2040 mm

6'8'' ft. in.

Width of track

250 mm

9.8 in.

Height between undercarriage and ground

320 mm

12.6 in.

Height between platform and ground

525 mm

1'9'' ft. in.

Platform tail turning radius

750 mm

2'6'' ft. in.

Length to center of rollers

1590 mm

5'3'' ft. in.

Fuel tank capacity

30 L

7.9 gal.

Hydraulic oil tank capacity

25 L

6.6 gal.

Track gauge

1250 mm

4'1'' ft. in.

Working pressure

24 Mpa

3481 psi

Arm length

1150 mm

3'9'' ft. in.

Boom length

2020 mm

6'8'' ft. in.

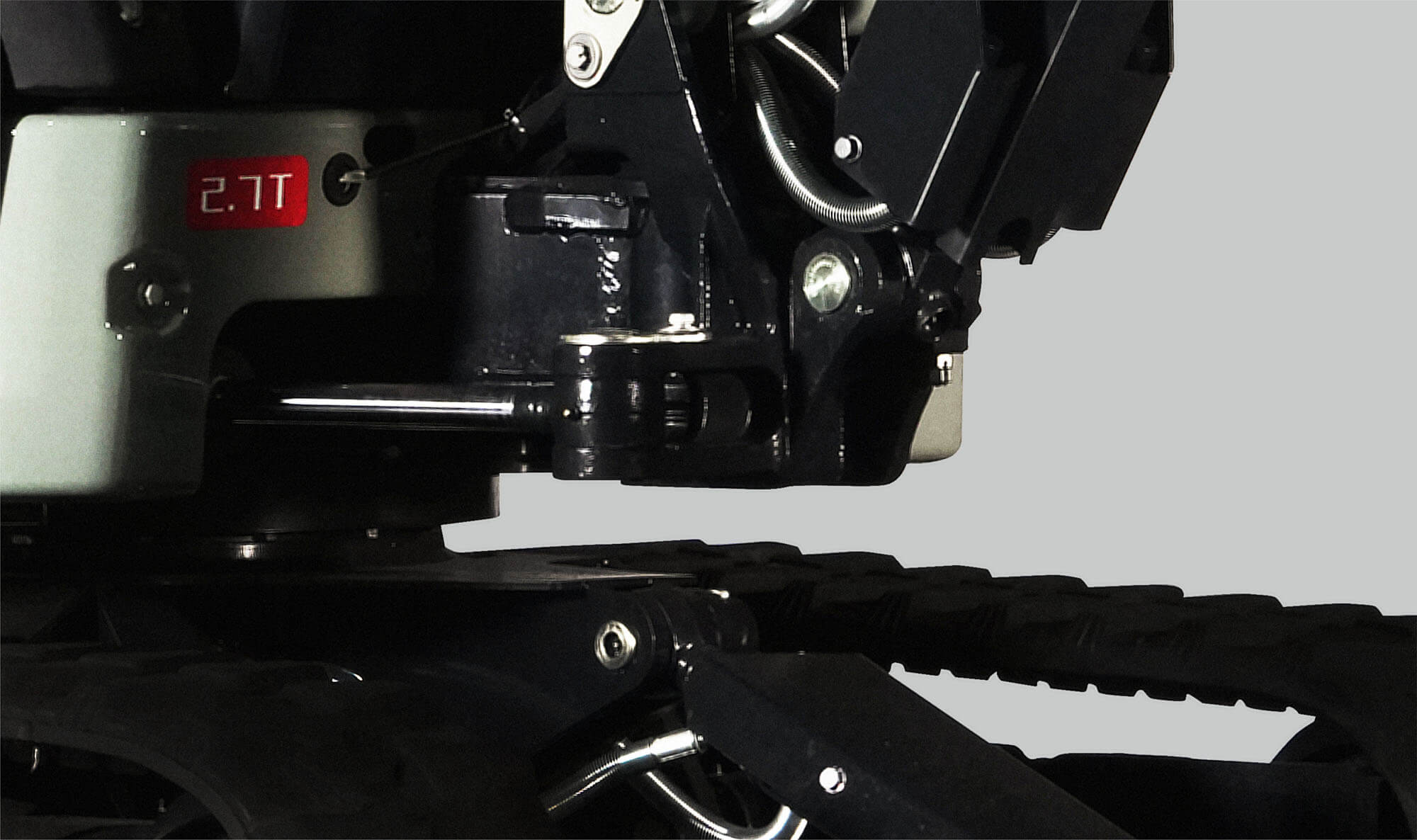

Boom swing - left/right

47 ° / 74 °

Flow rate

61.6 L/Min

16.3 gpm

* The final data shall be based on the actual factory products

Build&Quote

ZEWEIT 3(2.7 T) Features & Benefits

Expand all

FEATURES & BENEFITS

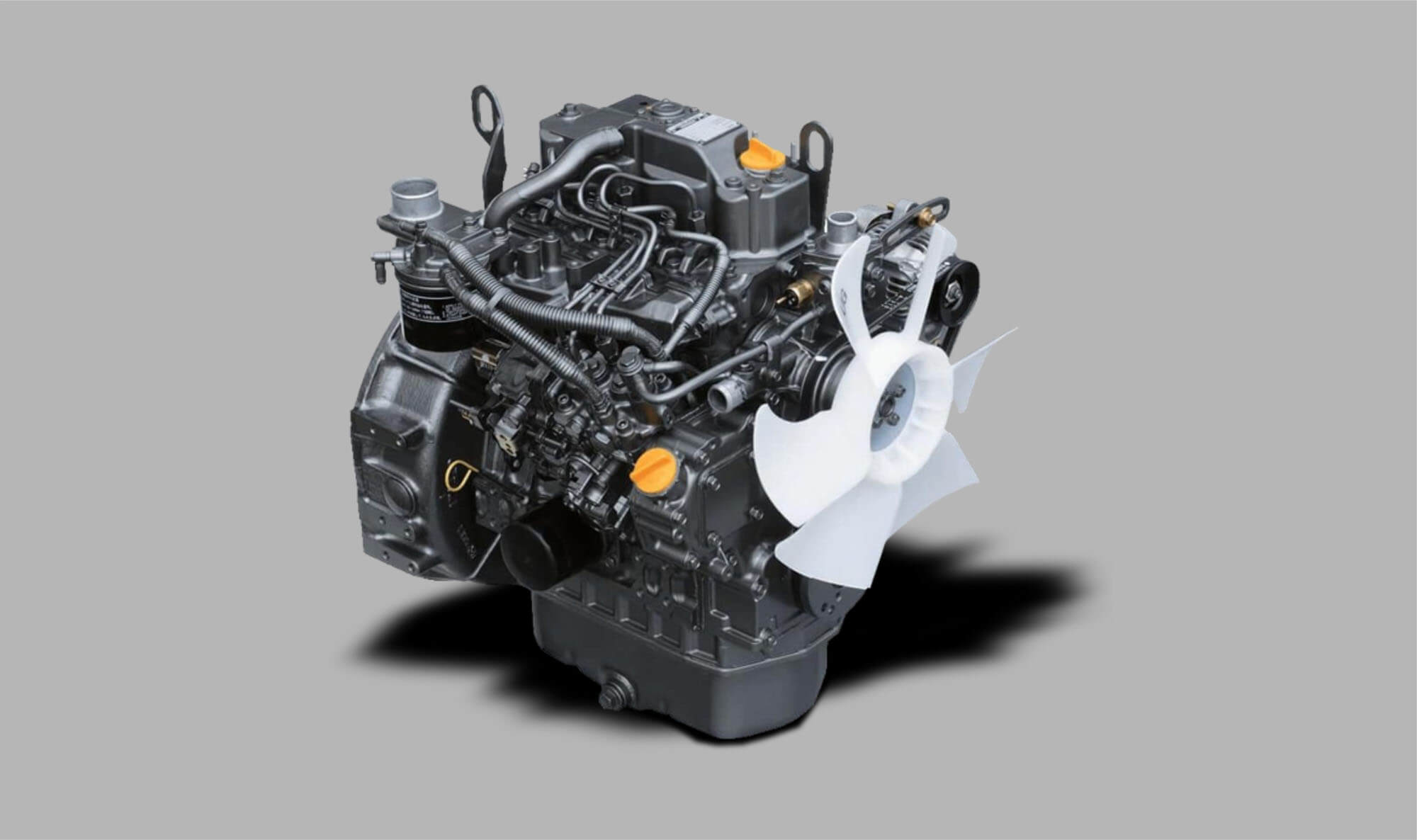

Euro V engine (Yanmar engine)

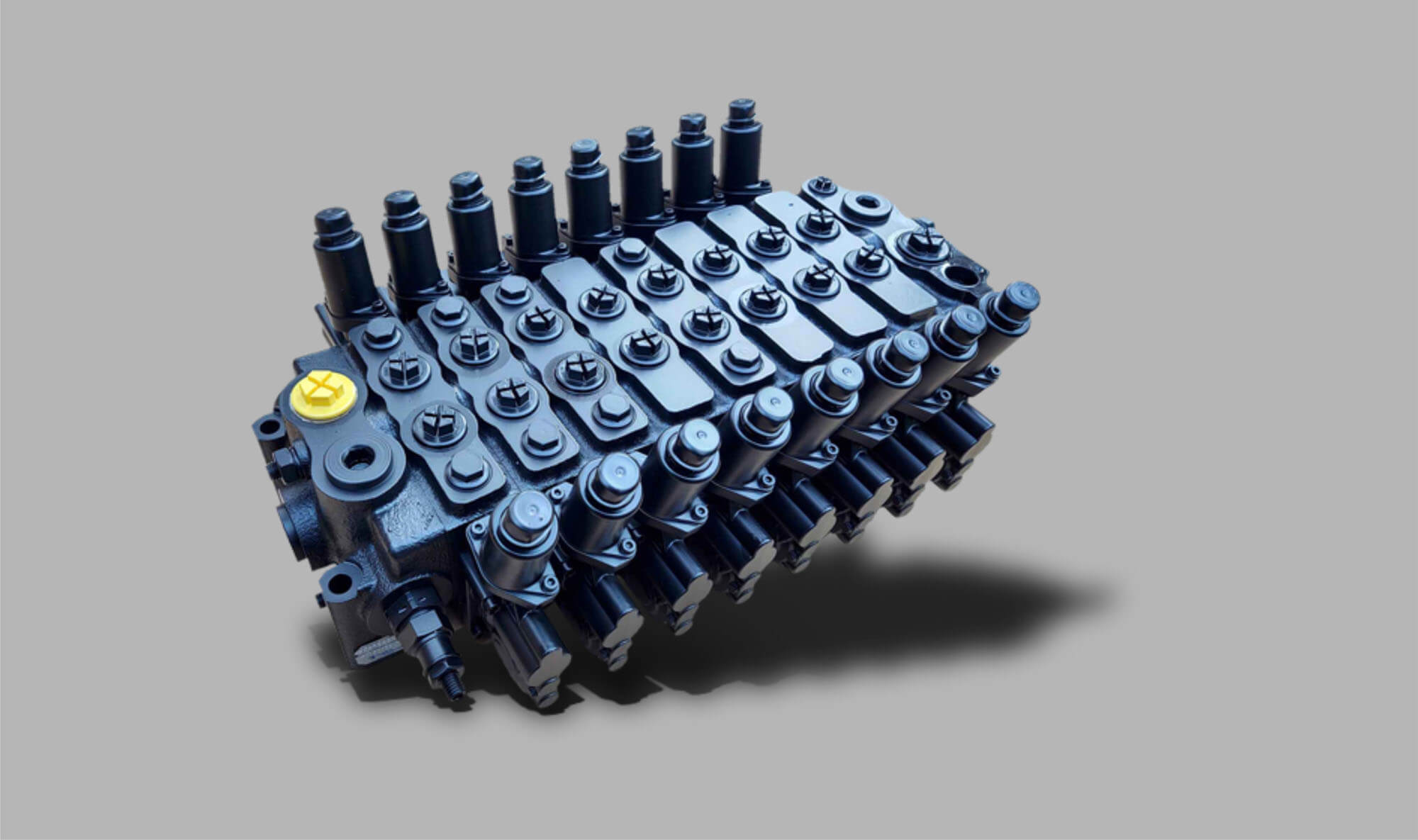

Load sensive hydraulic system

Superior working efficiency

Low fuel consumption

Standard with rubber tracks

INTERNATIONAL WARRANTY

Boleo Care is an extended warranty option for Boleo construction machinery that can last up to five years. The standard warranty is five years or 2,000 hours, but it can be extended to 3,000, 4,000, or 5,000 hours. When purchasing the warranty, customers can choose the number of service hours they want to use and only pay for the hours they actually use. The cost depends on the number of hours purchased, with 2,000 hours being free for 24 months, and 3,000, 4,000, and 5,000 hours being premium. Boleo Care is intended to help protect against unexpected repair costs and can help minimize downtime and maximize productivity. During the warranty period, all servicing must be performed by an authorized Boleo dealer. The warranty does not cover damage caused by abuse, vandalism, neglect, improper maintenance, or unapproved modifications.
